Search Results
10768 results for "Ariens Apex parts diagrams"
-exhaust-valve-spring-seat-ariens.png "Exhaust Valve Spring Seat - PLATINUM / PRO")
EXHAUST VALVE SPRING SEAT - PLATINUM / PRO
$3.45
Ariens exhaust valve spring seat provides stable support for the valve spring to maintain proper tension in PLATINUM and PROFESSIONAL engines. Its precision-machined OEM design promotes accurate valve movement and consistent combustion performance under demanding operation.
-cotter-pin-ariens.png "Engine Cotter Pin - SNO-THRO")
ENGINE COTTER PIN - SNO-THRO
$0.45
Ariens engine cotter pin helps secure engine linkage or shaft components in place during operation. Designed to prevent unintended movement or loosening in SNO-THRO operation, this OEM replacement pin supports proper engine assembly retention and dependable performance.
-charge-coil-sub-asm-ariens.png "Charge Coil Sub Assembly - PLATINUM / PROFESSIONAL")
CHARGE COIL SUB ASSEMBLY - PLATINUM / PROFESSIONAL
$26.97
Ariens charge coil sub-assembly supplies electrical power to support charging and powered engine features on PLATINUM and PROFESSIONAL models. Its durable OEM construction is designed to support reliable electrical performance under demanding operating conditions.

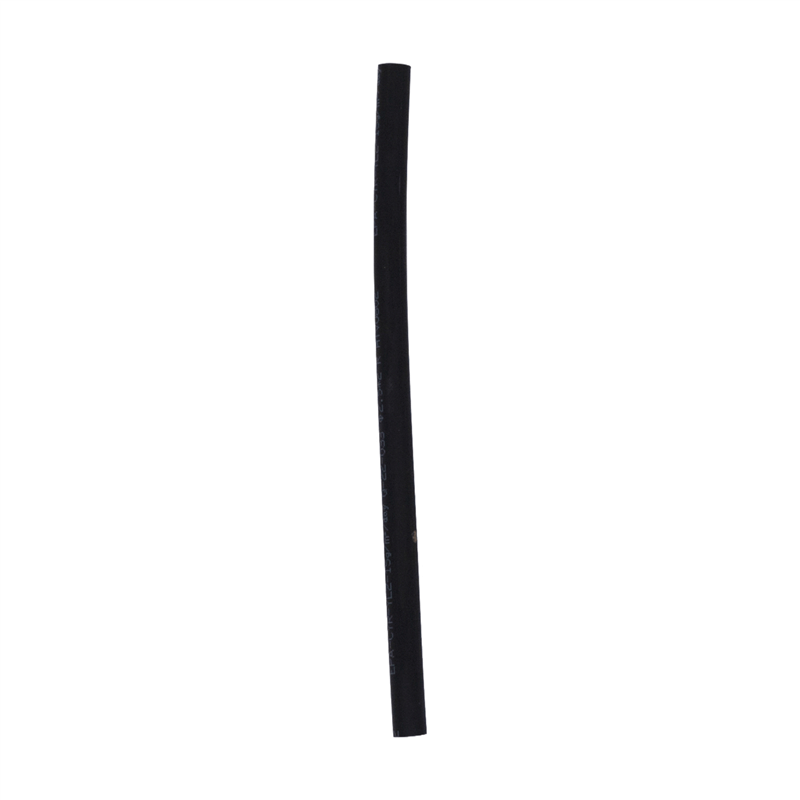

-fuel-tube-ariens.png "Fuel Tube - COMPACT / DELUXE")
FUEL TUBE - COMPACT / DELUXE
$5.12
Ariens fuel tube routes fuel from the tank to the carburetor on COMPACT and DELUXE models. Its OEM-fit design supports steady fuel supply to the intake system during use.
-balance-shaft-asm-ariens.png "Balancing Shaft Assembly - PLATINUM / PROFESSIONAL")
BALANCING SHAFT ASSEMBLY - PLATINUM / PROFESSIONAL
$24.09
Ariens balancing shaft assembly helps reduce engine vibration by counteracting rotational forces within the engine on PLATINUM and PROFESSIONAL models. Its precision-engineered OEM design supports smoother operation and improved engine stability during snow-clearing use.
-fuel-tank-shield-2-ariens.png "Fuel Tank Shield 2 - SNO-THRO")
FUEL TANK SHIELD 2 - SNO-THRO
$3.97
Ariens fuel tank shield 2 provides coverage around the fuel tank area on select SNO-THRO models, protecting it from surrounding engine heat and debris. OEM-fit design ensures secure installation during snow-clearing operation.
-wire-clip-ariens.png "Wire Clip - PLATINUM / PROFESSIONAL")
WIRE CLIP - PLATINUM / PROFESSIONAL
$1.09
Ariens wire clip secures engine wiring or small components within the engine assembly on PLATINUM and PROFESSIONAL models to maintain proper routing. Its OEM-fit design supports proper retention during engine operation.
ORANGE TOUCH-UP PAINT 0.6 OZ BOTTLE
$18.95
Restore your equipment’s original look with this genuine OEM Ariens Orange touch-up paint. Specially formulated for an exact color match, it’s perfect for covering small scratches and chips.
3/8 IN BONDED SEAL WASHER
$0.45
Ariens bonded seal washer helps provide a secure seal at fastener interfaces to prevent fluid leakage within assemblies on select equipment. Its OEM design includes an integrated sealing element to support reliable performance during operation.
42 IN DECK PTO WRAPPED V-BELT
$61.45
Ariens PTO clutching belt ensures smooth engagement between the engine and cutting deck for consistent performance. Engineered for 42-inch mower decks, it provides steady power transfer to keep blade operation smooth and cutting results uniform across the deck.

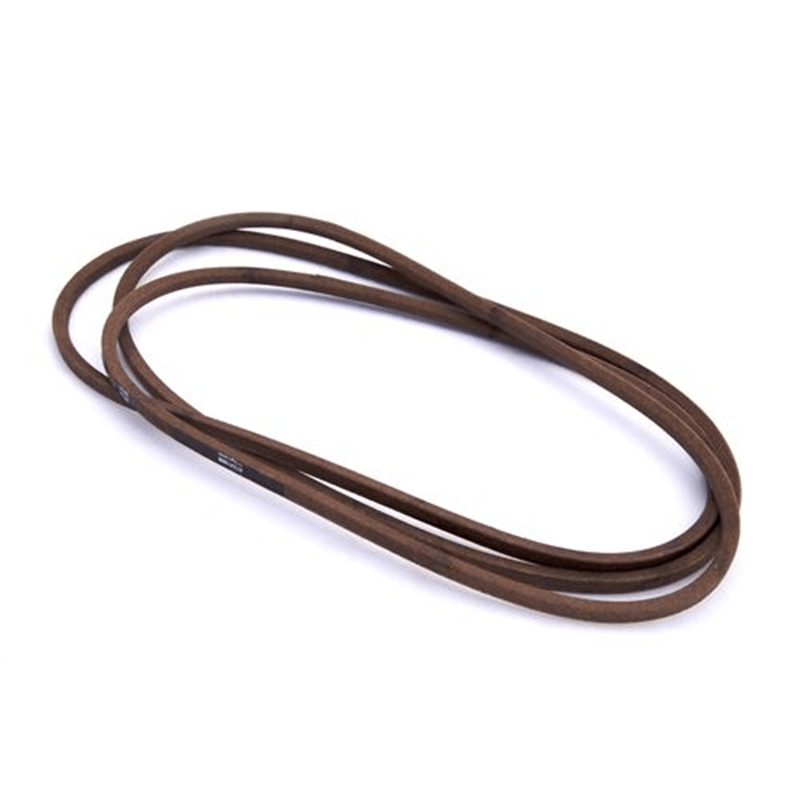

ZERO-TURN MOWER DRIVE V-BELT - WRAPPED - 40 IN.
$81.95
Ariens OEM zero-turn belts are specifically designed to be a perfect fit for the correct machine every time. Additionally, our OEM belts give you the longevity you need to minimize down time, and the highest quality belt to enhance performance and cut quality. This belt, which has a wrapped design, connects the engine to the transmission.
