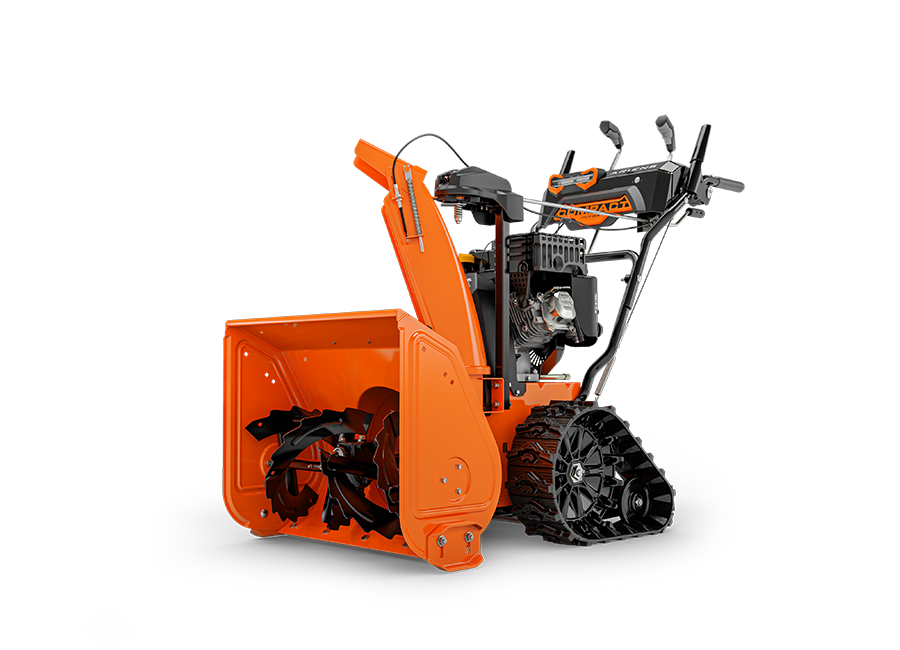

COMPACT TRACK 24

  • Featuring a big 24” clearing width that moves 59 tons of snow per hour
  • Track system for superior traction on slippery surfaces and strong 223cc Ariens AX engine powering 11” auger and 12” impeller
  • Blows snow up to 40 feet, Tall housing height, Folding handlebars for easy storage, Interlocking handles for one-handed operation
  • Starting at $1,499
Find Your local dealer
  • Specs
  • Downloads
  • Reviews

Compact Track 24

( Remove )

Add Model to Compare

Title

Compact Track 24

Model Number

920028

STAGE TYPE

Two Stage

CLEARING WIDTH (IN/CM)

24 In / 60.9cm

ENGINE BRAND

Ariens AX®

ENGINE POWER

10.0 lb / 10.0 kg

STARTING SYSTEM

120v / Electric

HOUSING HEIGHT

20 In / 50.7cm

THROWING DISTANCE

3 ft - 40 ft

CHUTE TURNING RADIUS

205

DEFLECTOR CONTROL

In-Dash Lever

TIRE SIZE

TIRE TYPE

Directional Snow Track

STEERING

Solid Locked

DRIVE TYPE

Disc-O-matic

SPEEDS

6 Forward/2 Reverse

LENGTH

53.3 In / 135.3cm

WIDTH

26.4 In / 67.0cm

HEIGHT

43.4 In / 110.2cm

WEIGHT

220 lb / 99.7 kg

GEAR CASE

Cast Iron

GEAR CASE WARRANTY

5 Year Consumer, 1 Year Commercial

IMPELLER PROFILE

Steel 3 Blade

IMPELLER DIAMETER

12 In / 30.4cm

AUGER DIAMETER

11 In / 27.9cm

AUGER TYPE

Steel Serrated

SKID SHOES

Steel Reversible

SCRAPER BAR

Steel Adjustable

PRODUCT WARRANTY

3 years residential use. 90 days commercial use

CHUTE ROTATION

2.5x Quick Turn

FEATURES AT A GLANCE

Light Type: Halogen
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
Track Drive: Standard
One Hand Interlock: Standard

Show Advanced Specs

Add Another Model

Compare
Reviews
Thank you for your review!
It looks like you’re not completely satisfied with your experience.
If you would like to report your concerns and have our customer support team follow-up with you, please visit our customer support portal.

Accessories

10 lb. Front Weight Kit

The Ariens 10Ib. front weight kit equalizes weight distribution and holds the scraper blade closer to the ground. Designed to enhance operator comfort and ease of control, this kit adds extra weight to your snowblower allowing for a better-balanced machine.

  • Part Number: 72406500

Composite Skid Shoe Kit

Constructed of durable polyurethane material, the Ariens OEM Non-Abrasive Skid Shoes resist wear while providing protection from scratching and marring of decorative surfaces.

  • Part Number: 72603100

Drift Cutter Kit (Black)

Chop through heavy snow drifts with the Ariens Drift Cutters. These cutter bars rotate down for regular use and help to direct snow into the auger housing for prompt discharge. This design allows for easy installation.

  • Part Number: 73203100

Snow Blower Maintenance Kit

This snow blower maintenance kit is made for Ariens Classic and Compact models. Keep your snow blower in peak operating condition by performing routine maintenance using these factory authorized parts and products. This kit incudes three shear bolts with nuts, one 32 oz bottle of 5W30 Ariens oil, one bottle of snow jet, and two packs of ultra-fresh gas stabilizer.

  • Part Number: 72000800

Snow Cab Kit

The Ariens snow cab kit attaches to any Ariens 2-Stage Snow Blower to provide the user with protection from wind and snow blowback. The cab enclosure offers front, side and top protection while operating your snow blower.

  • Part Number: 72102600

Steel Skit Shoe Kit

Prolong the life of the housing and scraper blade on your Ariens snow blower with an OEM Steel Skid Shoe Kit. Ariens engineered with steel material to resist wear and helps to protects pavement from scratching and marring. Includes mounting hardware.

  • Part Number: 72101100
