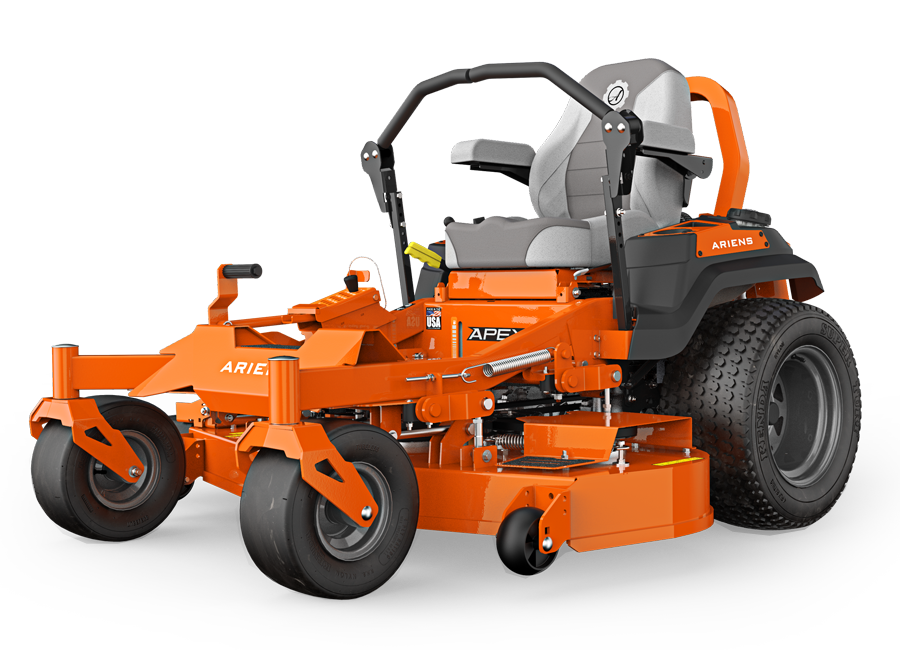

Front 3/4

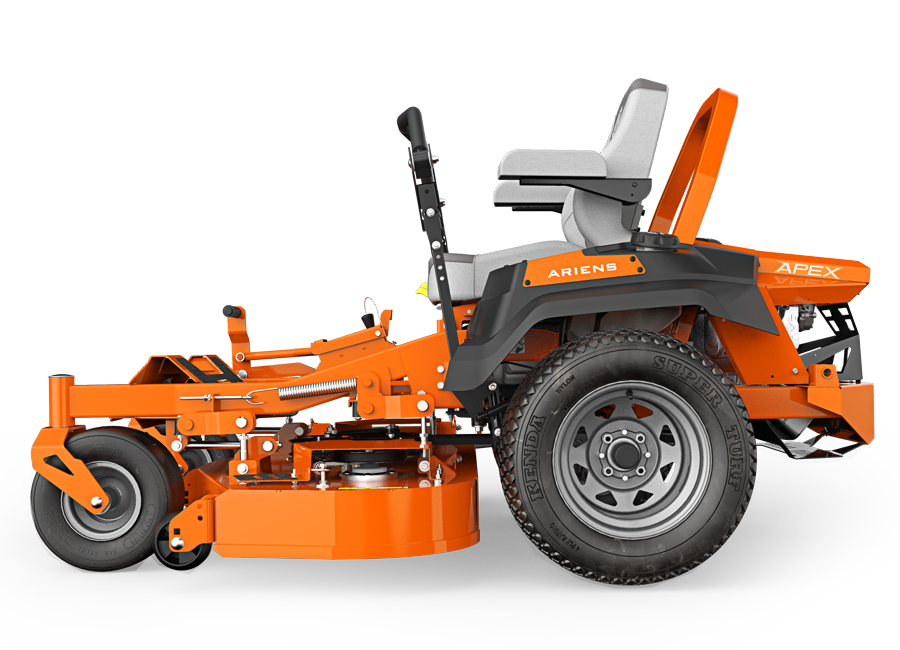

Profile

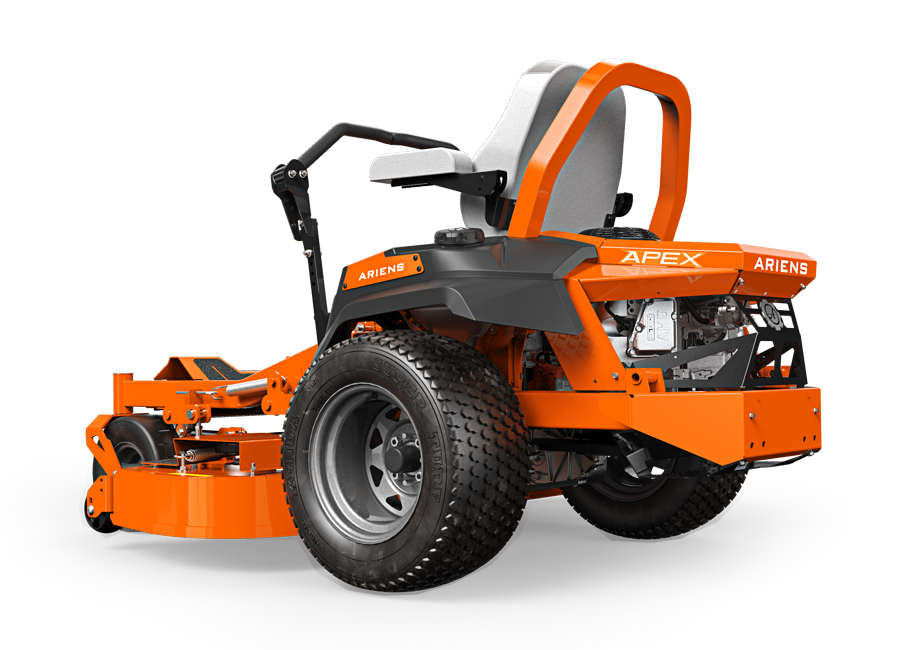

Rear 3/4

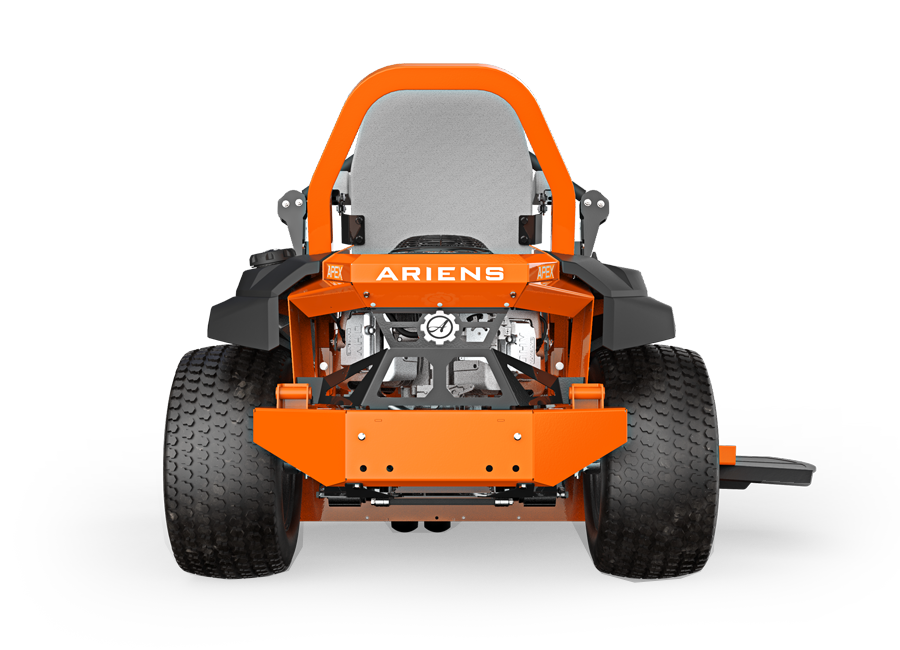

Rear

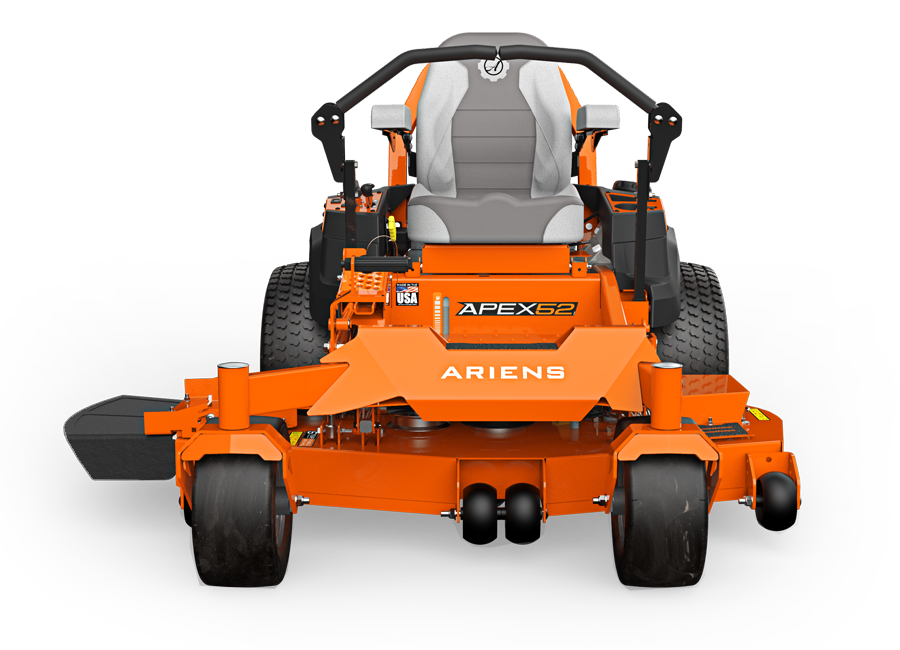

Front

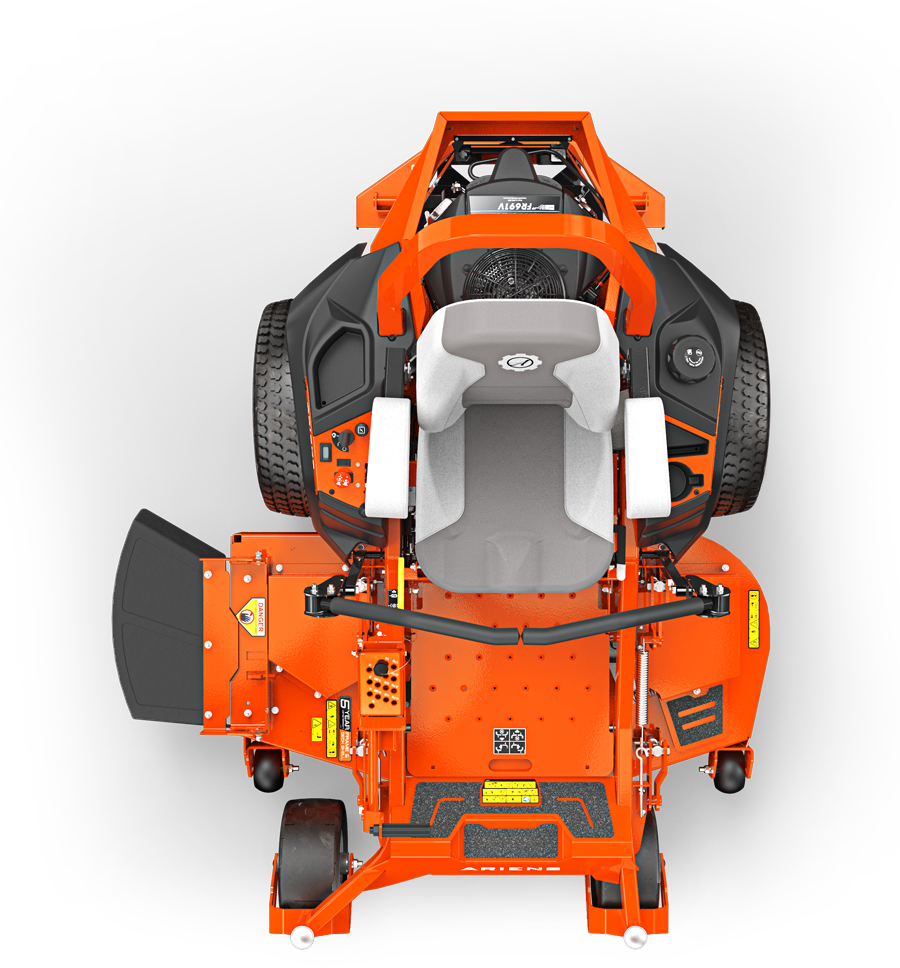

Top
APEX 60 KAWASAKI

TOP-OF-THE-CLASS ZERO-TURN. COMMERCIAL-GRADE FEATURES AND PERFORMANCE

Comfort, design, and durability, the all-new APEX is top of its class. 14cm (5½”) deep fabricated deck made of 10-gauge steel. Plush, padded high-back seat and armrests. Fully tubular steel frame for unprecedented strength. Simple and intuitive deck lift system and progressive steering for tighter control. Choice of 122cm (48”) or 132cm (52”) cutting widths.

Find Your local dealer

FULL TUBULAR FRAME

The fully tubular steel frame rails are strong and more resistant to stresses to support loads of the machine with unprecedented strength and stability.

COMMERCIAL-GRADE DECK

The thick 10-gauge steel deck is welded together for superior strength, durability and impact resistance.

BELT TENSION TECHNOLOGY

The self-adjusting belt keeps the tension constant to maximize belt life, minimize wear and maintain a consistent, quality cut.

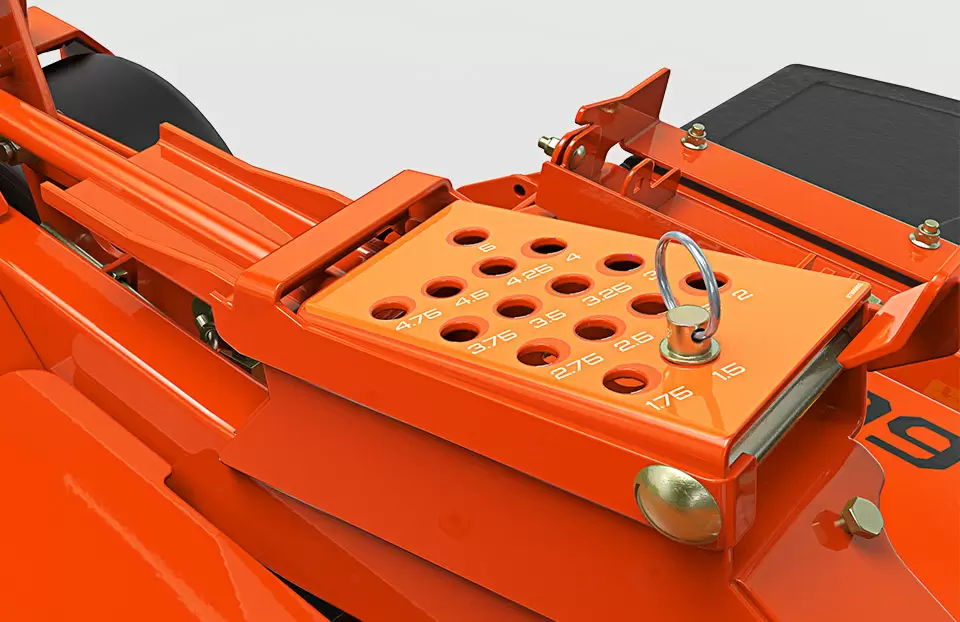

Deck Lift System

Deck Lift System

Foot-operated deck lift system and simple pin selection provide easy adjustment between 15 cutting positions in 1/4” increments.

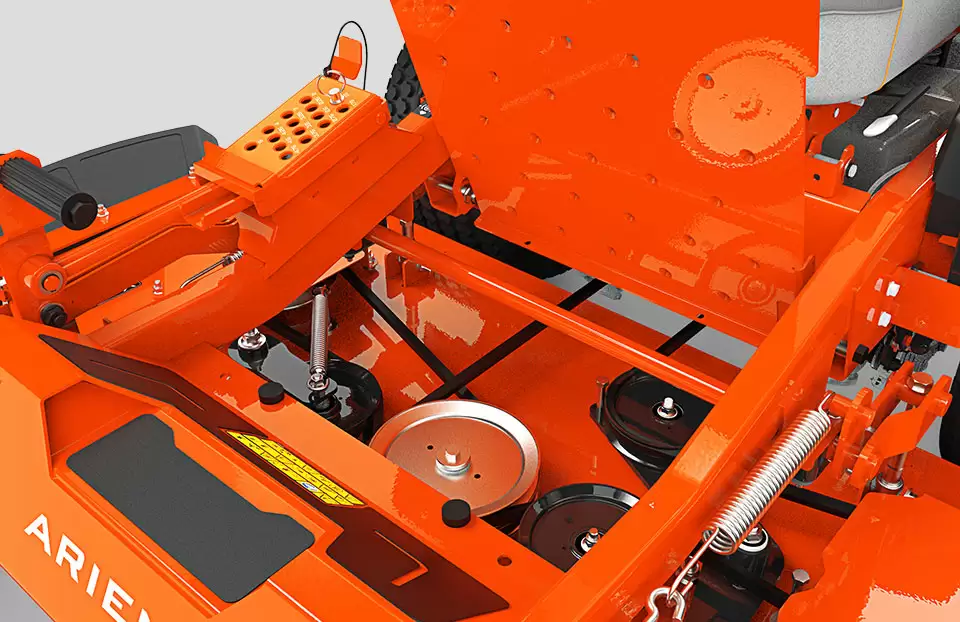

Deck Access Panel

Deck Access Panel

Easy access to blade spindles and belts for quicker and more thorough cleaning.

Padded Seat and Armrests

Padded Seat and Armrests

Plush, adjustable high-back seat with padded armrests allows for longer use in greater comfort.
